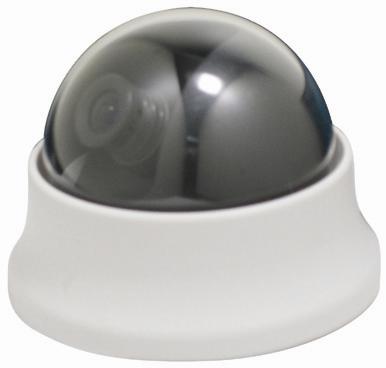

MINI DOME CAMERA

ACD-325SM

FEATURES
SPECIFICATIONS
>>ACD-325SM [back to top]
ITEM No. ACD-325SM
SENSOR 1/3" SONY COLOR CCD
NUMBER OF PIXELS NTSC: 510(H) x 492(V) / PAL: 500(H) x 582(V)
HORIZONTAL RESOLUTION Mid-resolution, more than 420 TV line
SCANNING SYSTEM 2:1 Interlace
SENSITIVITY ( 2700K 40IRE ) 0.4Lux / F 2.0
SYNCHRONIZATION Internal
S/N RATIO More than 46dB
GAMMA CORRECTION 0.45
ELECTRONIC SHUTTER Auto and up to 1/100,000
VIDEO OUTPUT 1 Vp-p, 75 ohm load
LENS 3.6mm (standard) (4mm, 6mm, 8mm and 12mm option)
POWER SUPPLY  DC 12V (-/+10%)
POWER CONSUMPTION 110mA
AUTO WHITE BALANCE MCT-AWB (MULTI COLOR TEMPERATURE AWB)
AUTO GAIN CONTROL Full automatic control
BACK LIGHT COMPENSATION Full automatic control
DIMENSION   HxD  mm 73mm x 53mm
NET WEIGHT  100g
STORAGE TEMPERATURE -30 to +60 degree C
OPERATING TEMPERATURE -10 to +45 degree C
